Bolt PRO Font

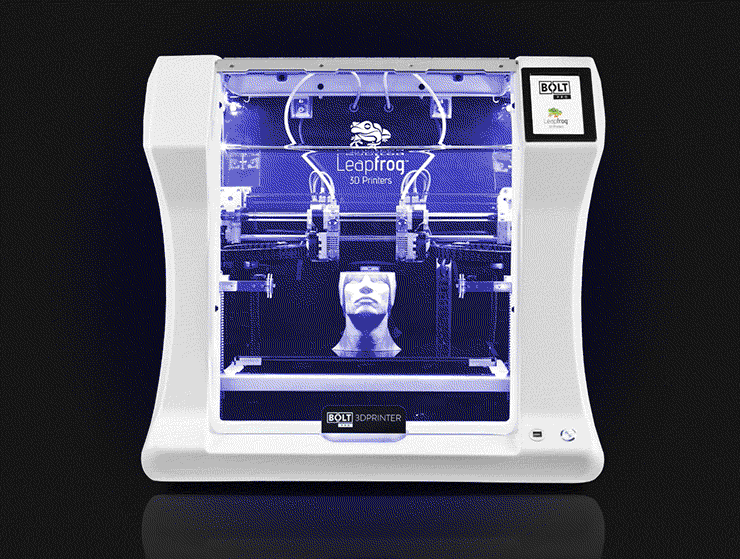

THE ADVANCED INDUSTRIAL PRINTER

by
Leapfrog logo

DUAL EXTRUDERS

Equipped with unique, swappable direct drive Independent Dual Extruders capable of sync or mirror-mode.

SUITABLE FOR OFFICES AND FACTORY FLOORS

The built-in HEPA carbon filter, reduces any harmful fumes which might be produced while printing by 99.9%.

HUGE BUILD VOLUME

With build volumes of up to 330 x 320 x 205mm, print on a swappable print bed made from either industrial grade Borosilicate  for exceptional print quality or granite for enhanced heat distribution and an increased life span.

RESPONSIVE USER INTERFACE

The user interface communicates with you for an improved 3D printing experience. The lighting of the enclosed build area changes color to indicate if its idle, heating or active.

The 7” touchscreen guides you in its software from necessary functions to multiple maintenance guides.

INDUSTRIAL QUALITY

Made of high grade aluminum underneath its signature design with every functional component made from steel for a long life span of intensive use.

ENHANCED FOR WORKFLOW

Multiple user logins and privileges and OneDrive and Dropbox integration, along with network connectivity with any device enables seamless workflow between different users or departments, and automatic firmware and software updates ensure peak operational performance.

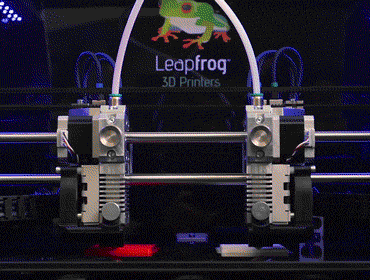

Bolt PRO Dual Extruders
Bolt PRO Status Indicator Lights
A fully integrated system which does all the work, leaving you to just materialize your ideas and designs.
Bolt PRO Connectivity
Bolt PRO in Office
Not an electronics device, but an advanced and sophisticated industrial machine, the Bolt PRO is built for long term performance and reliability and is suitable for any office or industrial environment.

MATERIALS

Chemically inert material useful for a range of industrial applications with strong and slightly flexible properties.

Scaffold printed by Bolt PRO
SCAFFOLD

Soluble material that is easier and more reliable to print compared to PVA and has great support properties.

Flexible tire printed by Bolt PRO
FLEX

Rubber-like material provides excellent shock absorbing solutions or flexible connections.

Gears printed by Bolt PRO
ENGINEERING PLA

An enhanced form of PLA which is easy to print and at the same time is strong and highly durable.

POLYPROPYLENE

CROCS

DESIGN TESTIMONIAL

Luca Faggin

Europe Innovation Manager Crocs

"Ever since the launch of our first clog we have been innovating, engineering and improving our footwear. In order to stay head of our competition, we must keep developing new products quickly. This is why we have chosen the Bolt 3D Printer for our prototyping department in Italy."

SPECIFICATIONS

Printing Technology

Fused Deposition Modelling

Highest Layer Z Resolution

50 microns (0.05mm)

Maximum Print Size (Single Extruder)

330mm X 320mm X 205mm

Maximum Print Size (Dual Extruder)

300mm X 320mm X 205mm

Maximum Print Speed

250mm/s

Filament Diameter

1.75mm

Filament Cartridge Capacity

750g

Nozzle Diameter

0.35mm

Build Platform

Heated

Power Requirements

600W

AC Input

88-264VAC, 47-63Hz

Physical Dimensions

72.3cm X 83.1cm X 80.1cm

Product Weight

61kg

THE BOLT PRO. FOR ENGINEERS, ARCHITECTS, BUSINESSES AND FACTORIES.

QUALITY SUPPORT FOR PEACE OF MIND

Every piece of technology requires quality support. Explore our tiered support plans which are structured with you, our client, in mind.
